Feature ObserversΒΆ
[1]:
import matplotlib.pyplot as plt
from job_shop_lib import JobShopInstance, Operation
from job_shop_lib.dispatching.feature_observers import (
feature_observer_factory,
FeatureObserverType,
CompositeFeatureObserver,
EarliestStartTimeObserver,
)
from job_shop_lib.dispatching import (
Dispatcher,
HistoryObserver,
ReadyOperationsFilterType,
create_composite_operation_filter,
)
from job_shop_lib.dispatching.rules import DispatchingRuleSolver
from job_shop_lib.visualization.gantt import (
plot_gantt_chart,
get_partial_gantt_chart_plotter,
)
from job_shop_lib.visualization.graphs import plot_disjunctive_graph
plt.style.use("ggplot")
m1 = 0
m2 = 1
m3 = 2
job_1 = [
Operation(m1, 1),
Operation(m2, 1),
Operation(m3, 7),
Operation(m1, 2),
]
job_2 = [Operation(m2, 5), Operation(m3, 1), Operation(m1, 1)]
job_3 = [Operation(m3, 1), Operation(m1, 3), Operation(m2, 2)]
jobs = [job_1, job_2, job_3]
instance = JobShopInstance(
jobs,
name="Irregular",
)
[2]:

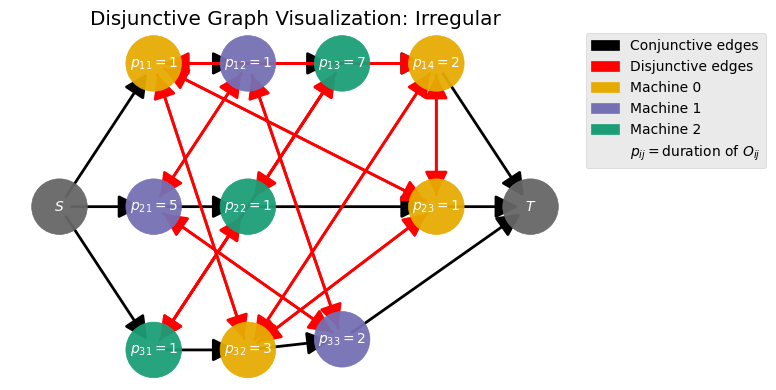

_ = plot_disjunctive_graph(instance)
[3]:
ready_operations_filter = create_composite_operation_filter(
[
ReadyOperationsFilterType.DOMINATED_OPERATIONS,
# ReadyOperationsFilterType.NON_IMMEDIATE_MACHINES,
]
)
dispatcher = Dispatcher(
instance, ready_operations_filter=ready_operations_filter
)
feature_observers = [
feature_observer_factory(feature_observer_type, dispatcher=dispatcher)
for feature_observer_type in FeatureObserverType
]
ealiest_start_time_observer = [
fo for fo in feature_observers if isinstance(fo, EarliestStartTimeObserver)
][0]
history = HistoryObserver(dispatcher)
composite = CompositeFeatureObserver(
dispatcher, feature_observers=feature_observers
)
print(ealiest_start_time_observer.earliest_start_times)
print(composite)
[[ 0. 1. 2. 9.]
[ 0. 5. 6. nan]
[ 0. 1. 4. nan]]
CompositeFeatureObserver:
------------------------
operations:
IsReady EarliestStartTime Duration IsScheduled PositionInJob IsCompleted
0 1.0 0.0 1.0 0.0 0.0 0.0
1 0.0 1.0 1.0 0.0 1.0 0.0
2 0.0 2.0 7.0 0.0 2.0 0.0
3 0.0 9.0 2.0 0.0 3.0 0.0
4 1.0 0.0 5.0 0.0 0.0 0.0
5 0.0 5.0 1.0 0.0 1.0 0.0
6 0.0 6.0 1.0 0.0 2.0 0.0
7 1.0 0.0 1.0 0.0 0.0 0.0
8 0.0 1.0 3.0 0.0 1.0 0.0
9 0.0 4.0 2.0 0.0 2.0 0.0
machines:
IsReady EarliestStartTime Duration IsScheduled RemainingOperations IsCompleted
0 1.0 0.0 7.0 0.0 4.0 0.0
1 1.0 0.0 8.0 0.0 3.0 0.0
2 1.0 0.0 9.0 0.0 3.0 0.0
jobs:
IsReady EarliestStartTime Duration IsScheduled RemainingOperations IsCompleted
0 1.0 0.0 11.0 0.0 4.0 0.0
1 1.0 0.0 7.0 0.0 3.0 0.0
2 1.0 0.0 6.0 0.0 3.0 0.0
[4]:
solver = DispatchingRuleSolver("most_work_remaining")
plot_function = get_partial_gantt_chart_plotter(show_available_operations=True)
for i in range(len(dispatcher.unscheduled_operations())):
solver.step(dispatcher)
print(f"------------------- Step {i + 1} -------------------")
scheduled_operation = history.history[-1]
print(f"Scheduled operation: {scheduled_operation}")
print(f"Current time: {dispatcher.current_time()}")
print(composite)
plot_function(
dispatcher.schedule,
makespan=11,
available_operations=dispatcher.available_operations(),
current_time=dispatcher.current_time(),
)
plt.title(f"Step {i + 1}")
plt.show()

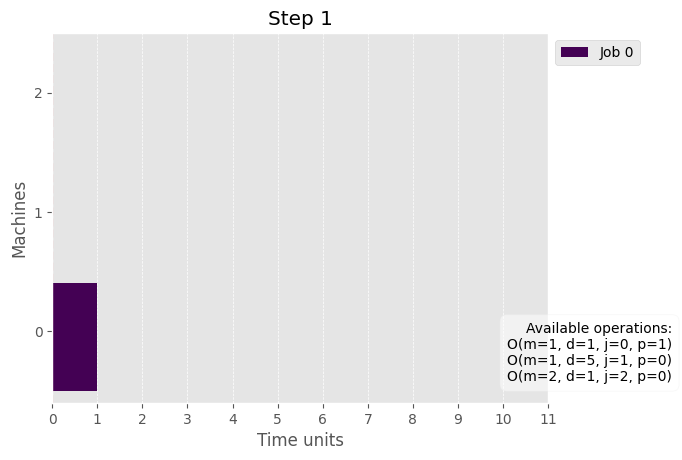

------------------- Step 1 -------------------
Scheduled operation: S-Op(operation=O(m=0, d=1, j=0, p=0), start_time=0, machine_id=0)
Current time: 0
CompositeFeatureObserver:
------------------------
operations:
IsReady EarliestStartTime Duration IsScheduled PositionInJob IsCompleted
0 0.0 0.0 1.0 1.0 0.0 0.0
1 1.0 1.0 1.0 0.0 0.0 0.0
2 0.0 2.0 7.0 0.0 1.0 0.0
3 0.0 9.0 2.0 0.0 2.0 0.0
4 1.0 0.0 5.0 0.0 0.0 0.0
5 0.0 5.0 1.0 0.0 1.0 0.0
6 0.0 6.0 1.0 0.0 2.0 0.0
7 1.0 0.0 1.0 0.0 0.0 0.0
8 0.0 1.0 3.0 0.0 1.0 0.0
9 0.0 4.0 2.0 0.0 2.0 0.0
machines:
IsReady EarliestStartTime Duration IsScheduled RemainingOperations IsCompleted
0 0.0 1.0 6.0 1.0 3.0 0.0
1 1.0 0.0 8.0 0.0 3.0 0.0
2 1.0 0.0 9.0 0.0 3.0 0.0
jobs:
IsReady EarliestStartTime Duration IsScheduled RemainingOperations IsCompleted
0 1.0 1.0 10.0 1.0 3.0 0.0
1 1.0 0.0 7.0 0.0 3.0 0.0
2 1.0 0.0 6.0 0.0 3.0 0.0

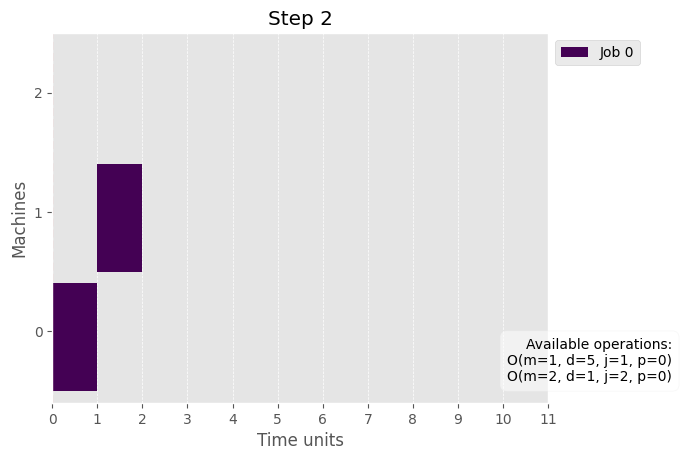

------------------- Step 2 -------------------
Scheduled operation: S-Op(operation=O(m=1, d=1, j=0, p=1), start_time=1, machine_id=1)
Current time: 0
CompositeFeatureObserver:
------------------------
operations:
IsReady EarliestStartTime Duration IsScheduled PositionInJob IsCompleted
0 0.0 0.0 1.0 1.0 0.0 0.0
1 0.0 1.0 1.0 1.0 0.0 0.0
2 0.0 2.0 7.0 0.0 0.0 0.0
3 0.0 9.0 2.0 0.0 1.0 0.0
4 1.0 2.0 5.0 0.0 0.0 0.0
5 0.0 7.0 1.0 0.0 1.0 0.0
6 0.0 8.0 1.0 0.0 2.0 0.0
7 1.0 0.0 1.0 0.0 0.0 0.0
8 0.0 1.0 3.0 0.0 1.0 0.0
9 0.0 4.0 2.0 0.0 2.0 0.0
machines:
IsReady EarliestStartTime Duration IsScheduled RemainingOperations IsCompleted
0 0.0 1.0 6.0 1.0 3.0 0.0
1 1.0 2.0 7.0 1.0 2.0 0.0
2 1.0 0.0 9.0 0.0 3.0 0.0
jobs:
IsReady EarliestStartTime Duration IsScheduled RemainingOperations IsCompleted
0 0.0 2.0 9.0 2.0 2.0 0.0
1 1.0 2.0 7.0 0.0 3.0 0.0
2 1.0 0.0 6.0 0.0 3.0 0.0

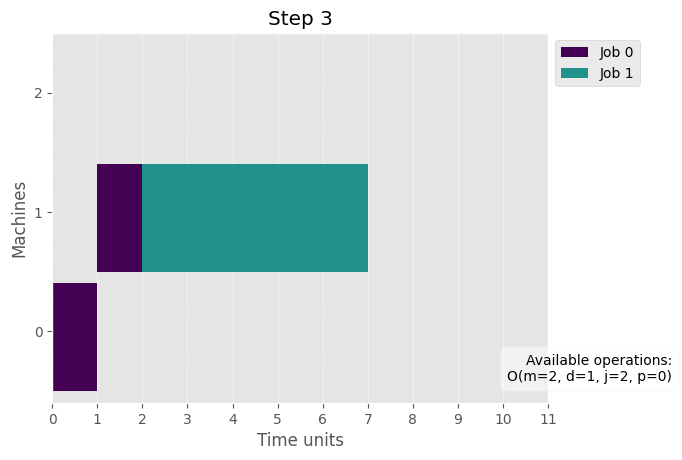

------------------- Step 3 -------------------
Scheduled operation: S-Op(operation=O(m=1, d=5, j=1, p=0), start_time=2, machine_id=1)
Current time: 0
CompositeFeatureObserver:
------------------------
operations:
IsReady EarliestStartTime Duration IsScheduled PositionInJob IsCompleted
0 0.0 0.0 1.0 1.0 0.0 0.0
1 0.0 1.0 1.0 1.0 0.0 0.0
2 0.0 2.0 7.0 0.0 0.0 0.0
3 0.0 9.0 2.0 0.0 1.0 0.0
4 0.0 2.0 5.0 1.0 0.0 0.0
5 0.0 7.0 1.0 0.0 0.0 0.0
6 0.0 8.0 1.0 0.0 1.0 0.0
7 1.0 0.0 1.0 0.0 0.0 0.0
8 0.0 1.0 3.0 0.0 1.0 0.0
9 0.0 7.0 2.0 0.0 2.0 0.0
machines:
IsReady EarliestStartTime Duration IsScheduled RemainingOperations IsCompleted
0 0.0 1.0 6.0 1.0 3.0 0.0
1 0.0 7.0 2.0 2.0 1.0 0.0
2 1.0 0.0 9.0 0.0 3.0 0.0
jobs:
IsReady EarliestStartTime Duration IsScheduled RemainingOperations IsCompleted
0 0.0 2.0 9.0 2.0 2.0 0.0
1 0.0 7.0 2.0 1.0 2.0 0.0
2 1.0 0.0 6.0 0.0 3.0 0.0
------------------- Step 4 -------------------
Scheduled operation: S-Op(operation=O(m=2, d=1, j=2, p=0), start_time=0, machine_id=2)
Current time: 1
CompositeFeatureObserver:
------------------------
operations:
IsReady EarliestStartTime Duration IsScheduled PositionInJob IsCompleted
0 0.0 -1.0 1.0 1.0 0.0 1.0
1 0.0 0.0 1.0 1.0 0.0 0.0
2 1.0 1.0 7.0 0.0 0.0 0.0
3 0.0 8.0 2.0 0.0 1.0 0.0
4 0.0 1.0 5.0 1.0 0.0 0.0
5 1.0 6.0 1.0 0.0 0.0 0.0
6 0.0 7.0 1.0 0.0 1.0 0.0
7 0.0 -1.0 1.0 1.0 0.0 1.0
8 1.0 0.0 3.0 0.0 0.0 0.0
9 0.0 6.0 2.0 0.0 1.0 0.0
machines:
IsReady EarliestStartTime Duration IsScheduled RemainingOperations IsCompleted
0 1.0 0.0 6.0 0.0 3.0 0.0
1 0.0 6.0 2.0 2.0 1.0 0.0
2 1.0 1.0 8.0 0.0 2.0 0.0
jobs:
IsReady EarliestStartTime Duration IsScheduled RemainingOperations IsCompleted
0 1.0 1.0 9.0 1.0 2.0 0.0
1 1.0 6.0 2.0 1.0 2.0 0.0
2 1.0 0.0 5.0 0.0 2.0 0.0

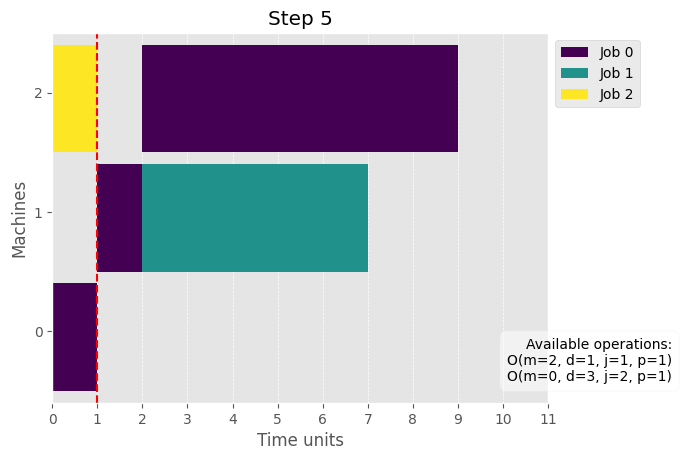

------------------- Step 5 -------------------
Scheduled operation: S-Op(operation=O(m=2, d=7, j=0, p=2), start_time=2, machine_id=2)
Current time: 1
CompositeFeatureObserver:
------------------------
operations:
IsReady EarliestStartTime Duration IsScheduled PositionInJob IsCompleted
0 0.0 -1.0 1.0 1.0 0.0 1.0
1 0.0 0.0 1.0 1.0 0.0 0.0
2 0.0 1.0 7.0 1.0 0.0 0.0
3 0.0 8.0 2.0 0.0 0.0 0.0
4 0.0 1.0 5.0 1.0 0.0 0.0
5 1.0 8.0 1.0 0.0 0.0 0.0
6 0.0 9.0 1.0 0.0 1.0 0.0
7 0.0 -1.0 1.0 1.0 0.0 1.0
8 1.0 0.0 3.0 0.0 0.0 0.0
9 0.0 6.0 2.0 0.0 1.0 0.0
machines:
IsReady EarliestStartTime Duration IsScheduled RemainingOperations IsCompleted
0 1.0 0.0 6.0 0.0 3.0 0.0
1 0.0 6.0 2.0 2.0 1.0 0.0
2 1.0 8.0 1.0 1.0 1.0 0.0
jobs:
IsReady EarliestStartTime Duration IsScheduled RemainingOperations IsCompleted
0 0.0 8.0 2.0 2.0 1.0 0.0
1 1.0 8.0 2.0 1.0 2.0 0.0
2 1.0 0.0 5.0 0.0 2.0 0.0

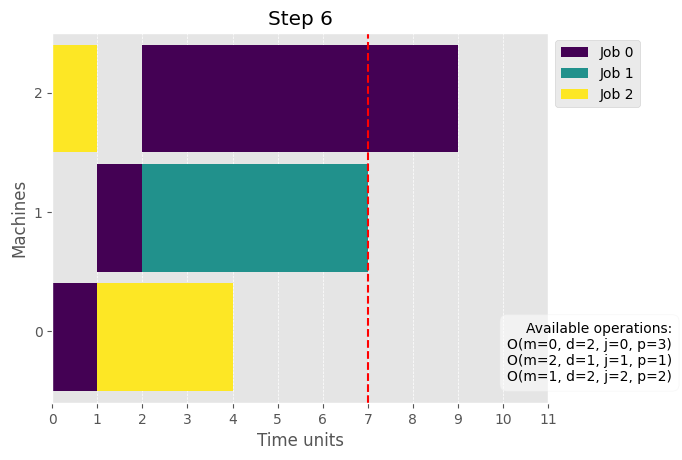

------------------- Step 6 -------------------
Scheduled operation: S-Op(operation=O(m=0, d=3, j=2, p=1), start_time=1, machine_id=0)
Current time: 7
CompositeFeatureObserver:
------------------------
operations:
IsReady EarliestStartTime Duration IsScheduled PositionInJob IsCompleted
0 0.0 -7.0 1.0 1.0 0.0 1.0
1 0.0 -6.0 1.0 1.0 0.0 1.0
2 0.0 -5.0 2.0 1.0 0.0 0.0
3 1.0 2.0 2.0 0.0 0.0 0.0
4 0.0 -5.0 5.0 1.0 0.0 1.0
5 1.0 2.0 1.0 0.0 0.0 0.0
6 0.0 3.0 1.0 0.0 1.0 0.0
7 0.0 -7.0 1.0 1.0 0.0 1.0
8 0.0 -6.0 3.0 1.0 0.0 1.0
9 1.0 0.0 2.0 0.0 0.0 0.0
machines:
IsReady EarliestStartTime Duration IsScheduled RemainingOperations IsCompleted
0 1.0 2.0 3.0 0.0 2.0 0.0
1 1.0 0.0 2.0 0.0 1.0 0.0
2 1.0 2.0 1.0 1.0 1.0 0.0
jobs:
IsReady EarliestStartTime Duration IsScheduled RemainingOperations IsCompleted
0 1.0 2.0 2.0 1.0 1.0 0.0
1 1.0 2.0 2.0 0.0 2.0 0.0
2 1.0 0.0 2.0 0.0 1.0 0.0

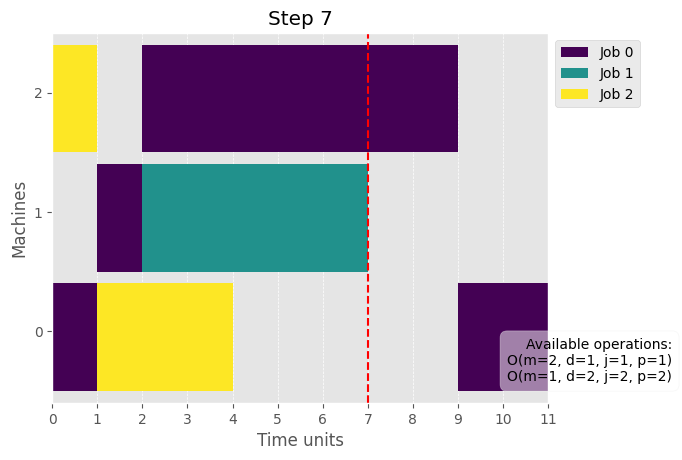

------------------- Step 7 -------------------
Scheduled operation: S-Op(operation=O(m=0, d=2, j=0, p=3), start_time=9, machine_id=0)
Current time: 7
CompositeFeatureObserver:
------------------------
operations:
IsReady EarliestStartTime Duration IsScheduled PositionInJob IsCompleted
0 0.0 -7.0 1.0 1.0 0.0 1.0
1 0.0 -6.0 1.0 1.0 0.0 1.0
2 0.0 -5.0 2.0 1.0 0.0 0.0
3 0.0 2.0 2.0 1.0 0.0 0.0
4 0.0 -5.0 5.0 1.0 0.0 1.0
5 1.0 2.0 1.0 0.0 0.0 0.0
6 0.0 4.0 1.0 0.0 1.0 0.0
7 0.0 -7.0 1.0 1.0 0.0 1.0
8 0.0 -6.0 3.0 1.0 0.0 1.0
9 1.0 0.0 2.0 0.0 0.0 0.0
machines:
IsReady EarliestStartTime Duration IsScheduled RemainingOperations IsCompleted
0 0.0 4.0 1.0 1.0 1.0 0.0
1 1.0 0.0 2.0 0.0 1.0 0.0
2 1.0 2.0 1.0 1.0 1.0 0.0
jobs:
IsReady EarliestStartTime Duration IsScheduled RemainingOperations IsCompleted
0 0.0 2.0 0.0 2.0 0.0 0.0
1 1.0 2.0 2.0 0.0 2.0 0.0
2 1.0 0.0 2.0 0.0 1.0 0.0

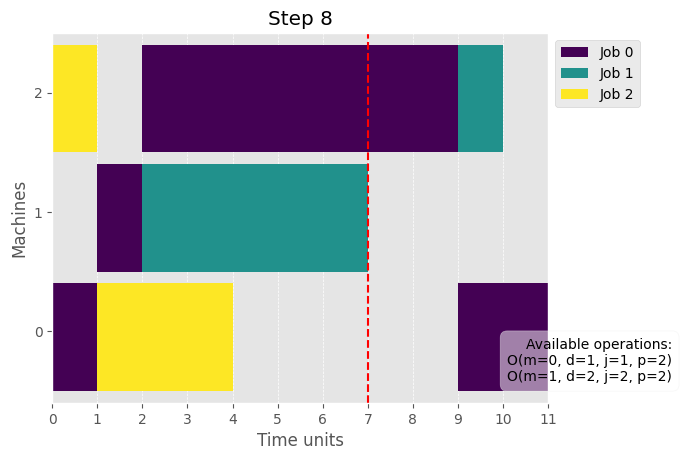

------------------- Step 8 -------------------
Scheduled operation: S-Op(operation=O(m=2, d=1, j=1, p=1), start_time=9, machine_id=2)
Current time: 7
CompositeFeatureObserver:
------------------------
operations:
IsReady EarliestStartTime Duration IsScheduled PositionInJob IsCompleted
0 0.0 -7.0 1.0 1.0 0.0 1.0
1 0.0 -6.0 1.0 1.0 0.0 1.0
2 0.0 -5.0 2.0 1.0 0.0 0.0
3 0.0 2.0 2.0 1.0 0.0 0.0
4 0.0 -5.0 5.0 1.0 0.0 1.0
5 0.0 2.0 1.0 1.0 0.0 0.0
6 1.0 4.0 1.0 0.0 0.0 0.0
7 0.0 -7.0 1.0 1.0 0.0 1.0
8 0.0 -6.0 3.0 1.0 0.0 1.0
9 1.0 0.0 2.0 0.0 0.0 0.0
machines:
IsReady EarliestStartTime Duration IsScheduled RemainingOperations IsCompleted
0 1.0 4.0 1.0 1.0 1.0 0.0
1 1.0 0.0 2.0 0.0 1.0 0.0
2 0.0 -7.0 0.0 2.0 0.0 0.0
jobs:
IsReady EarliestStartTime Duration IsScheduled RemainingOperations IsCompleted
0 0.0 2.0 0.0 2.0 0.0 0.0
1 1.0 4.0 1.0 1.0 1.0 0.0
2 1.0 0.0 2.0 0.0 1.0 0.0
------------------- Step 9 -------------------
Scheduled operation: S-Op(operation=O(m=1, d=2, j=2, p=2), start_time=7, machine_id=1)
Current time: 11
CompositeFeatureObserver:
------------------------
operations:
IsReady EarliestStartTime Duration IsScheduled PositionInJob IsCompleted
0 0.0 -11.0 1.0 1.0 0.0 1.0
1 0.0 -10.0 1.0 1.0 0.0 1.0
2 0.0 -9.0 2.0 1.0 0.0 1.0
3 0.0 -2.0 2.0 1.0 0.0 1.0
4 0.0 -9.0 5.0 1.0 0.0 1.0
5 0.0 -2.0 1.0 1.0 0.0 1.0
6 1.0 0.0 1.0 0.0 0.0 0.0
7 0.0 -11.0 1.0 1.0 0.0 1.0
8 0.0 -10.0 3.0 1.0 0.0 1.0
9 0.0 -4.0 2.0 1.0 0.0 1.0
machines:
IsReady EarliestStartTime Duration IsScheduled RemainingOperations IsCompleted
0 1.0 0.0 1.0 0.0 1.0 0.0
1 0.0 -11.0 0.0 0.0 0.0 1.0
2 0.0 -11.0 0.0 0.0 0.0 1.0
jobs:
IsReady EarliestStartTime Duration IsScheduled RemainingOperations IsCompleted
0 0.0 2.0 0.0 0.0 0.0 1.0
1 1.0 0.0 1.0 0.0 1.0 0.0
2 0.0 0.0 0.0 0.0 0.0 1.0

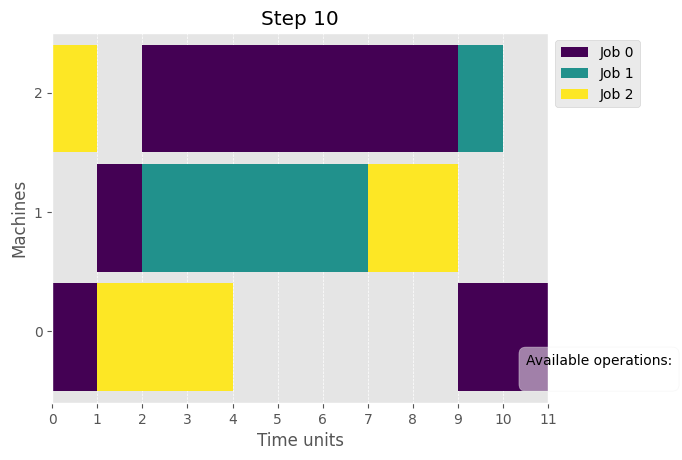

------------------- Step 10 -------------------
Scheduled operation: S-Op(operation=O(m=0, d=1, j=1, p=2), start_time=11, machine_id=0)
Current time: 12
CompositeFeatureObserver:
------------------------
operations:
IsReady EarliestStartTime Duration IsScheduled PositionInJob IsCompleted
0 0.0 -12.0 1.0 1.0 0.0 1.0
1 0.0 -11.0 1.0 1.0 0.0 1.0
2 0.0 -10.0 2.0 1.0 0.0 1.0
3 0.0 -3.0 2.0 1.0 0.0 1.0
4 0.0 -10.0 5.0 1.0 0.0 1.0
5 0.0 -3.0 1.0 1.0 0.0 1.0
6 0.0 -1.0 1.0 1.0 0.0 1.0
7 0.0 -12.0 1.0 1.0 0.0 1.0
8 0.0 -11.0 3.0 1.0 0.0 1.0
9 0.0 -5.0 2.0 1.0 0.0 1.0
machines:
IsReady EarliestStartTime Duration IsScheduled RemainingOperations IsCompleted
0 0.0 -12.0 0.0 0.0 0.0 1.0
1 0.0 -12.0 0.0 0.0 0.0 1.0
2 0.0 -12.0 0.0 0.0 0.0 1.0
jobs:
IsReady EarliestStartTime Duration IsScheduled RemainingOperations IsCompleted
0 0.0 2.0 0.0 0.0 0.0 1.0
1 0.0 0.0 0.0 0.0 0.0 1.0
2 0.0 0.0 0.0 0.0 0.0 1.0
[5]:

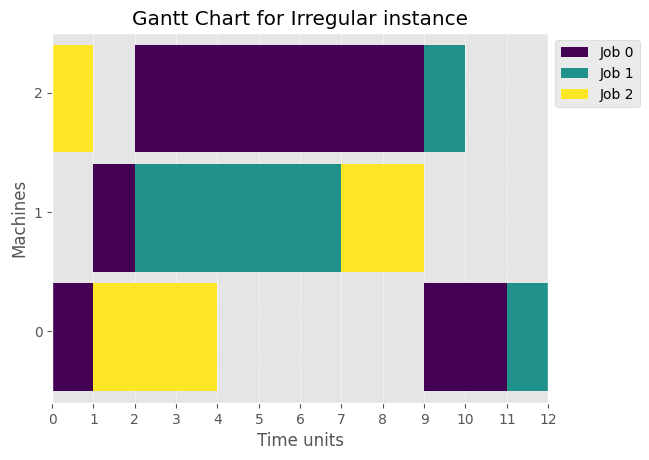

plot_gantt_chart(dispatcher.schedule)
[5]:
(<Figure size 640x480 with 1 Axes>,
<Axes: title={'center': 'Gantt Chart for Irregular instance'}, xlabel='Time units', ylabel='Machines'>)
[ ]:
